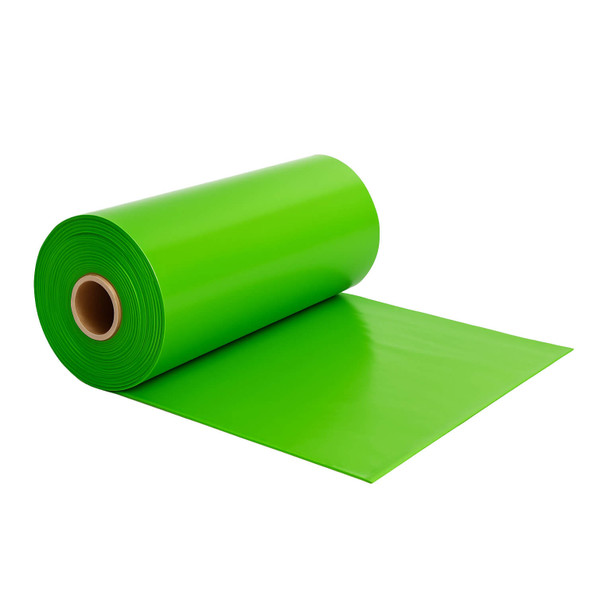

Vapor Pro Vapor Barrier Film 10 Mil Green Class A

Vapor Pro vapor barrier film

10 mil 12 x 210 Green USVB

 12 rolls per pallet

MADE IN THE USA

PRODUCT DESCRIPTION
VaporPro™ is a high-performance polyethylene film designed for use as a vapor retarder under concrete slabs. This film is manufactured in the United States
of America using high quality prime, virgin resins. VaporPro is designed as a low permeance, high strength, and high puncture resistant film that meets and
exceeds the ASTM E1745 requirements for a Class A vapor retarder.

TECHNICAL DATA

Technical Property Test Method 10 Mil Results Unit
Color Green
Thickness, Nominal 10 mils
Roll Dimensions 14 x 210 feet
Surface Area 2,940 feet2
Roll Weight 141 lbs
Classification ASTM E1745-17 Class A, B, & C
Puncture Resistance ASTM D1709 2,645 grams
Tensile Strength - MD ASTM D882 50 lbf/in
Tensile Strength - TD ASTM D882 50 lbf/in

Water Vapor Permeance ASTM E154 Section 7 0.024
ASTM F1249
perms

ASTM E154

perms
Section 8 0.050
Water Vapor Permeance After Conditioning Section 11 0.051
Section 12 0.052
Section 13 0.054
Note: perms = grains/(ft2*hr*in-Hg)

INSTALLATION
VaporPro™ vapor barrier is to be installed by following the guidelines of ASTM E1643. Unroll the vapor barrier over a sand, tamped earth, or aggregate base. Ensure that the seams of vapor barrier overlap a minimum of six inches and are sealed using a low permeance, high adhesion seam tape. All penetrations of the vapor barrier film must be sealed.

LIMITED WARRANTY
A limited warranty on VaporPro™ to meet the published specifications as well as to be free of defects in product materials and workmanship at the time of shipment. Revolution does not offer any warranties with regards to the merchantability or fitness of products for a particular use. Please contact Revolution for more information surrounding the limited warranty of VaporPro™ solutions.
